The Complete Govee Permanent Outdoor Light Mounting Bracket Installation Guide

Why Govee Lights Need Proper Mounting Brackets

If you've installed Govee Permanent Outdoor Lights (H705A/B/C, H705D/E/F Light 2, H706A/B/C PRO, or H805A/B/C ELITE models), you've likely discovered the biggest weakness: the 3M adhesive backing fails in real-world weather conditions. Temperature swings, UV exposure, rain, and seasonal expansion cause the lights to fall, leaving you frustrated and your installation incomplete.

Our custom 3D printed PETG mounting brackets solve this problem permanently. This guide walks you through professional installation from start to finish.

What You'll Need

Tools Required

• Power drill with Phillips head bit
• Tape measure or laser measure
• Pencil for marking
• Level (2-foot or laser level recommended)
• Ladder appropriate for your installation height
• Safety glasses

Materials

• Katt Shop 3D printed PETG mounting brackets (quantity based on your light run)
• #8 x 1.5" exterior-grade screws (stainless steel or coated)
• Govee Permanent Outdoor Lights kit
• Optional: Spacing template (downloadable from our resources)

Step 1: Surface Preparation

Clean your soffit, fascia, or mounting surface thoroughly. Remove dirt, cobwebs, and old adhesive residue. The mounting brackets work on wood, vinyl, aluminum, and composite materials. Ensure the surface is dry before beginning installation.

Pro Tip: If mounting to vinyl siding, locate the solid backing or studs behind the siding for maximum hold. Our brackets distribute weight effectively, but proper anchoring is critical for long-term durability.

Step 2: Planning Your Layout

Govee recommends specific spacing between light nodes based on your model:

• H705 Series (A/B/C): 10-inch spacing
• H705 Light 2 (D/E/F): 10-inch spacing
• H706 PRO Series: 12-inch spacing
• H805 ELITE Series: Adjustable, typically 10-12 inches

Measure your roofline and mark bracket positions with a pencil. Use a level to ensure straight alignment—crooked lights are immediately noticeable at night.

Common Spacing Mistakes to Avoid

• Starting too close to corners (leave 6-8 inches for wire routing)
• Inconsistent spacing (creates uneven light patterns)
• Ignoring obstacles like downspouts or vents
• Not accounting for the power supply location

Step 3: Installing the Mounting Brackets

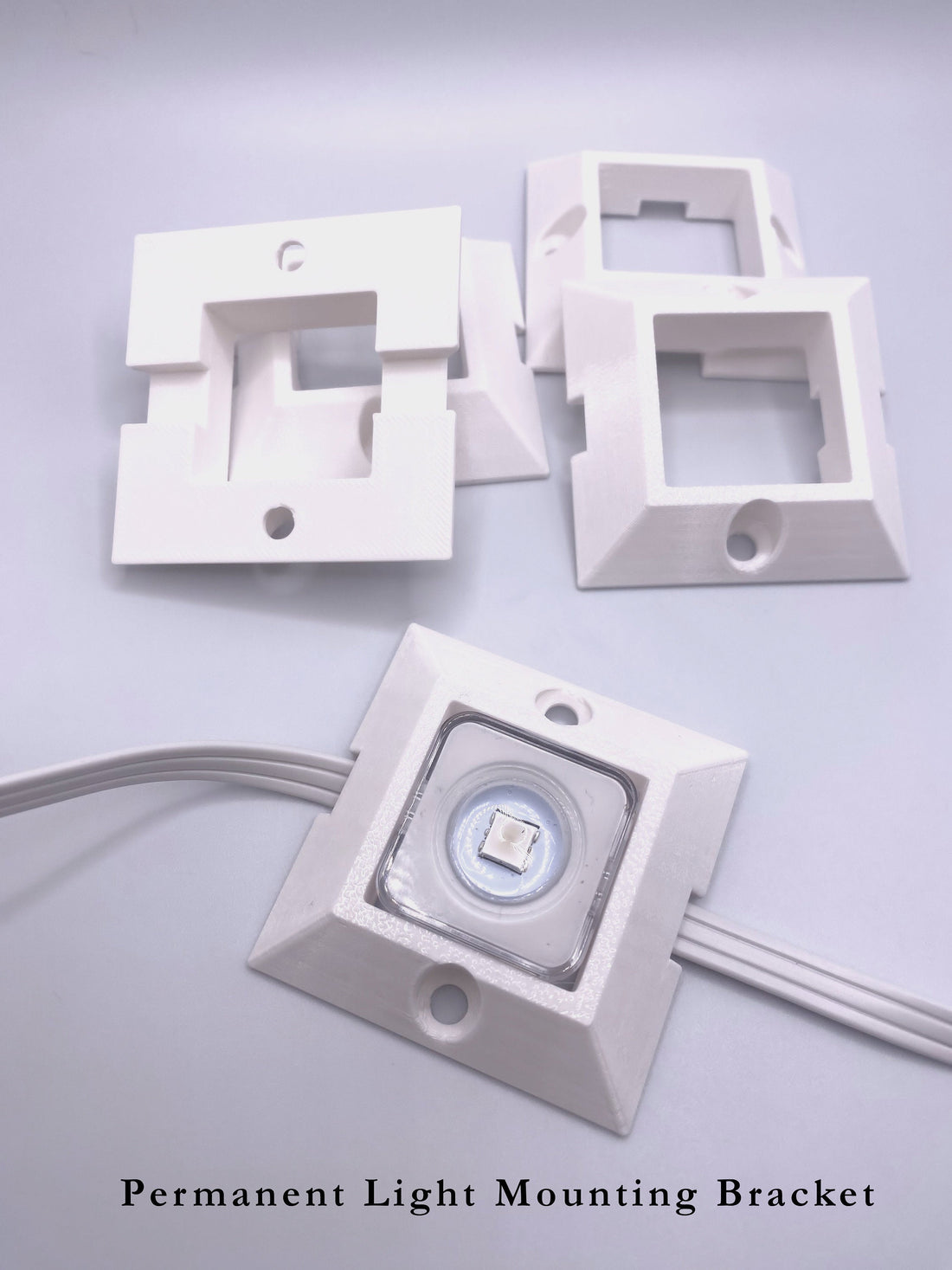

Our PETG brackets feature precision-designed channels that grip Govee light housings securely while allowing easy insertion and removal for maintenance.

Installation Process

1. Position the first bracket at your starting point
2. Mark screw holes with a pencil through the bracket mounting holes
3. Pre-drill pilot holes (1/8" bit recommended for wood, appropriate masonry bit for other surfaces)
4. Secure bracket with #8 exterior screws—snug but not overtightened
5. Repeat for each bracket position, maintaining consistent spacing

Why PETG Material Matters: We manufacture these brackets using UV-resistant PETG filament on our fleet of 36+ professional 3D printers. Unlike PLA (which becomes brittle in sunlight and cold), PETG maintains flexibility and strength from -40°F to 180°F, ensuring your brackets won't crack during winter freezes or summer heat.

Step 4: Installing Govee Lights into Brackets

Once all brackets are mounted:

1. Start at the power supply end of your light string
2. Snap each Govee light node into its corresponding bracket—you'll feel a secure click
3. Route the wire between brackets, allowing slight slack for thermal expansion
4. Continue along the entire run
5. Connect to the Govee controller and power supply per manufacturer instructions

Step 5: Testing and Adjustment

Before finalizing:

• Power on the lights and check for proper operation
• Inspect alignment from ground level—make adjustments if needed
• Verify all brackets are secure
• Test the Govee app connectivity and color patterns

Troubleshooting Common Installation Issues

Lights Won't Snap Into Brackets

Ensure you're using the correct bracket model for your Govee light series. Our brackets are model-specific because housing dimensions vary between H705, H706, and H805 series.

Brackets Feel Loose

Check that screws are properly tightened and that you've hit solid backing material. For hollow surfaces, use appropriate anchors.

Uneven Light Line

This usually indicates inconsistent bracket height. Use a laser level or chalk line to establish a reference line before installation.

Maintenance and Seasonal Care

One major advantage of bracket-mounted lights: easy removal for cleaning or storage. Simply unsnap lights from brackets without removing the brackets themselves. This is impossible with adhesive-mounted lights.

Inspect brackets annually for any loose screws and retighten as needed. PETG's weather resistance means the brackets themselves require no maintenance.

Before and After: Real Installation Results

Customers report 100% elimination of fallen lights after switching from adhesive to our bracket system. The installation takes slightly longer upfront but saves countless hours of frustration reattaching failed adhesive mounts.

Frequently Asked Questions

How many brackets do I need?

One bracket per light node. A typical 100-foot Govee kit with 10-inch spacing requires approximately 120 brackets.

Will these work on my specific Govee model?

We manufacture brackets for H705A/B/C, H705D/E/F (Light 2), H706A/B/C (PRO), and H805A/B/C (ELITE). Check your model number on the Govee controller or packaging.

Can I install these myself?

Yes! If you're comfortable using a drill and ladder, this is a straightforward DIY project. Most homeowners complete installation in 2-4 hours depending on run length.

What if I need to remove the lights?

Simply unsnap them from the brackets. The brackets stay mounted, making reinstallation quick and easy.

Why Choose Katt Shop Brackets?

We've scaled from 10 to 36+ professional 3D printers specifically to meet demand for reliable Govee mounting solutions. Every bracket is manufactured in-house using premium UV-resistant PETG filament, quality-checked, and shipped ready to install.

Unlike generic 3D printed brackets sold on marketplaces, our designs are refined through real-world testing and customer feedback. We understand the engineering challenges because we manufacture at scale.

Ready to install your Govee lights the right way? Browse our complete selection of model-specific mounting brackets and get your permanent outdoor lighting system installed permanently.
